Blower Performance Curve: 5 Important Curves to Understand CFM, Pressure, Efficiency & Power

Selecting the correct industrial blower is not simply a matter of choosing the model with the highest CFM. A blower may advertise a very high airflow capacity, but that airflow can change significantly when the blower has to overcome duct resistance, filters, dampers, furnace passages, bends, or other system restrictions. This is why engineers and maintenance professionals use a blower performance curve.

A blower performance curve provides a graphical representation of how a blower performs under different operating conditions. Depending on the manufacturer’s chart, it may show airflow, static pressure, total pressure, efficiency, power consumption, speed, and operating limits.

For industrial applications in the USA and India, understanding these curves can help prevent common selection problems such as insufficient airflow, excessive motor loading, high energy consumption, unstable operation, and incorrect pressure selection.

In this guide, we will explain 5 important blower curves:

1. Static Pressure Curve
2. Total Pressure Curve
3. Efficiency Curve
4. Power Curve
5. System Curve

We will also explain formulas, units, practical examples, and how these curves work together to identify the actual operating point.

What Is a Blower Performance Curve?

A blower performance curve is a graph that shows the relationship between a blower’s airflow and other performance parameters. Airflow is commonly expressed as:

• CFM — Cubic Feet per Minute
• m³/min — Cubic meters per minute
• m³/h — Cubic meters per hour

Pressure may be expressed as:

• Pa — Pascal
• kPa — Kilopascal
• mmWG or mmH₂O — millimeters of water gauge
• inWG or inH₂O — inches of water gauge

Depending on the manufacturer, one chart may contain several curves.

A typical centrifugal blower performance chart may show airflow on the horizontal X-axis and pressure on the vertical Y-axis. Additional curves may indicate efficiency and power.

The most important idea is that a blower does not deliver the same pressure at every airflow rate. For example, a blower might produce high pressure at low airflow but significantly less pressure at higher airflow.

Therefore, the correct question is not: “How much maximum CFM can this blower produce?”

The better question is: “How much CFM will this blower deliver at my required system pressure?”

That distinction is extremely important during industrial blower selection.

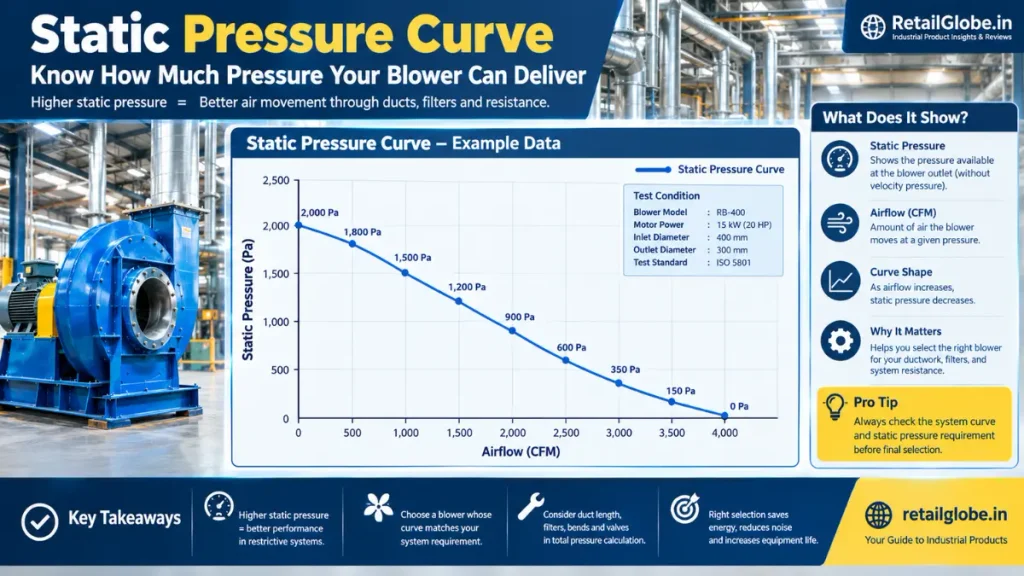

1. Static Pressure Curve

Static pressure is the pressure available from the blower to overcome resistance in the air-moving system. In an industrial installation, resistance may come from:

• Ductwork
• Elbows
• Filters
• Dampers
• Heat exchangers
• Furnaces
• Grilles
• Nozzles
• Scrubbers
• Cyclones
• Long duct runs
• Process equipment

The static pressure curve shows how blower static pressure changes as airflow changes. Normally:

• Airflow increases → available blower pressure decreases
• Airflow decreases → available blower pressure increases

The exact shape depends on blower design, speed, impeller geometry, and operating conditions.

Example

Suppose an illustrative blower has the following performance:

Airflow	Static Pressure
0 CFM	1,500 Pa
1,000 CFM	1,300 Pa
2,000 CFM	950 Pa
3,000 CFM	550 Pa
4,000 CFM	150 Pa

If your process requires 3,000 CFM at 950 Pa, this particular blower would not meet that requirement at the same operating condition. This demonstrates why maximum CFM alone is not enough.

Static Pressure Conversion

For approximate engineering conversion: 1 inWG ≈ 249 Pa and: 1 mmWG ≈ 9.81 Pa

Therefore: 1,000 Pa ÷ 249 ≈ 4.02 inWG So 1,000 Pa is approximately 4.0 inWG.

Where Static Pressure Is Important:

Static pressure is particularly important for industrial systems containing significant resistance. Examples include:

• Furnace combustion air
• Dust collection
• Industrial ventilation
• Fume extraction
• Drying systems
• HVAC systems
• Process cooling
• Material handling
• Air pollution control systems

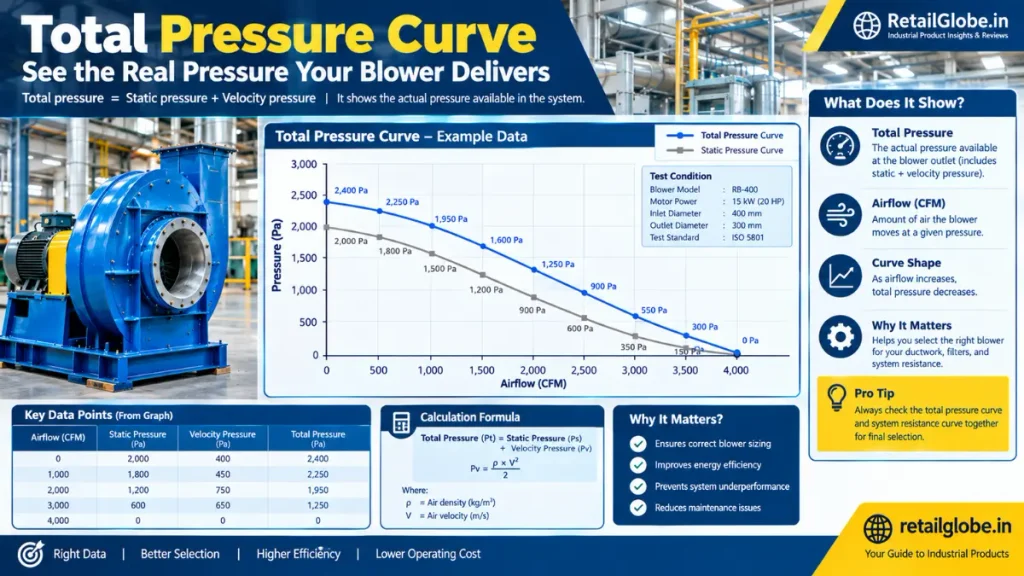

2. Total Pressure Curve

What Is Total Pressure? Total pressure represents the overall pressure increase provided by the blower. A simplified relationship is:

Total Pressure = Static Pressure + Velocity Pressure

Velocity pressure represents the pressure associated with air velocity. For air-moving systems, total pressure becomes particularly useful when evaluating the complete energy change of the air.

Example

Suppose a blower produces: Static Pressure = 1,000 Pa and: Velocity Pressure = 200 Pa

Then: Total Pressure = 1,000 + 200 = 1,200 Pa

Therefore, the total pressure rise is approximately 1,200 Pa.

Why Is Total Pressure Important?

Engineers may use total pressure when comparing:

• Blower inlet and outlet conditions
• Duct system energy losses
• Fan/blower efficiency
• System pressure requirements
• Air velocity effects

One of the most common mistakes is confusing static pressure and total pressure.

A manufacturer’s performance chart should always be checked to determine which pressure definition is being used. Do not compare a static-pressure requirement directly with a total-pressure curve without understanding the manufacturer’s test conditions and definitions.

Static Pressure vs Total Pressure

The difference can be summarized simply:

Parameter	Meaning
Static Pressure	Pressure available to overcome system resistance
Velocity Pressure	Pressure associated with air velocity
Total Pressure	Static pressure + velocity pressure

For many practical industrial selection tasks, static pressure is highly important because the blower must overcome system resistance. However, total pressure can be essential when performing a complete engineering analysis.

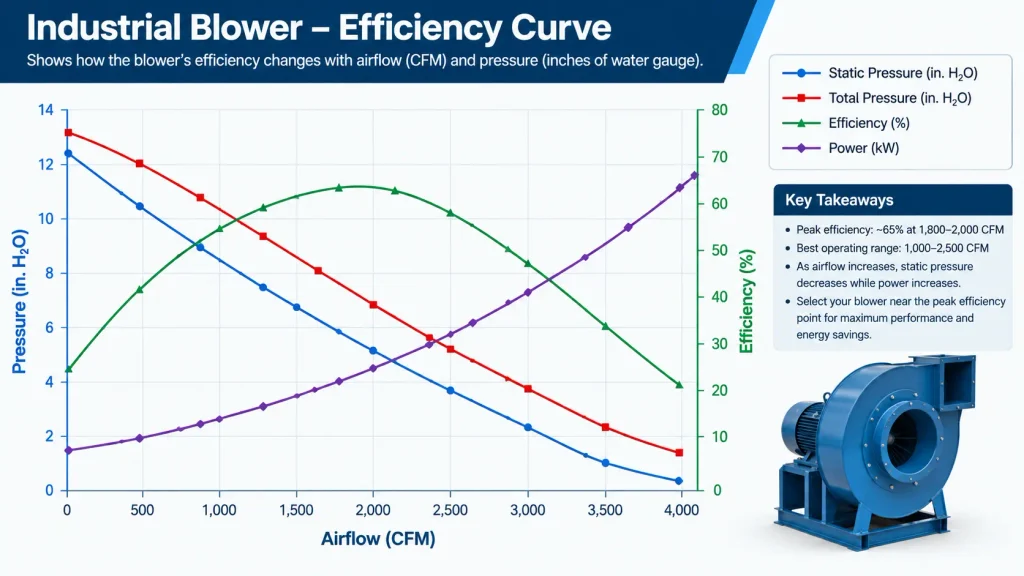

3. Efficiency Curve

Blower efficiency tells us how effectively the blower converts input mechanical power into useful air-moving power.

• A simplified relationship is: Efficiency = Air Power ÷ Shaft Power × 100
• Air power can be calculated approximately using: Air Power = Q × ΔP

where:

• Q = volumetric airflow
• ΔP = pressure rise

When using SI units:

• Q is in m³/s
• Pressure is in Pa
• Power is obtained in watts

Practical Example

Suppose:

• Airflow = 2 m³/s
• Pressure = 1,000 Pa

Then:

• Air Power = 2 × 1,000
• Air Power = 2,000 W

If blower efficiency is 70%:

• Shaft Power = 2,000 ÷ 0.70
• Shaft Power ≈ 2,857 W

Therefore, approximately: 2.86 kW

is required at the blower shaft under this simplified condition. Actual motor selection must also consider transmission losses, motor efficiency, starting requirements, operating margin, and manufacturer recommendations.

Best Efficiency Point — BEP

The efficiency curve normally rises toward a maximum and then falls. The region around maximum efficiency is commonly referred to as the: Best Efficiency Point (BEP)

Operating close to the appropriate efficient region can help reduce energy consumption and unnecessary mechanical stress. However, BEP should not be treated as the only selection criterion. A blower must also meet:

• Required CFM
• Required pressure
• Process requirements
• Motor power
• Operating temperature
• Air density
• Noise requirements
• Speed limitations
• Manufacturer operating limits

Example Efficiency Curve

An illustrative blower could have:

Airflow	Efficiency
1,000 CFM	55%
2,000 CFM	68%
3,000 CFM	76%
4,000 CFM	70%
5,000 CFM	58%

In this example, efficiency is highest around 3,000 CFM. This does not mean the blower must always operate at exactly 3,000 CFM. The actual operating point depends on the complete system.

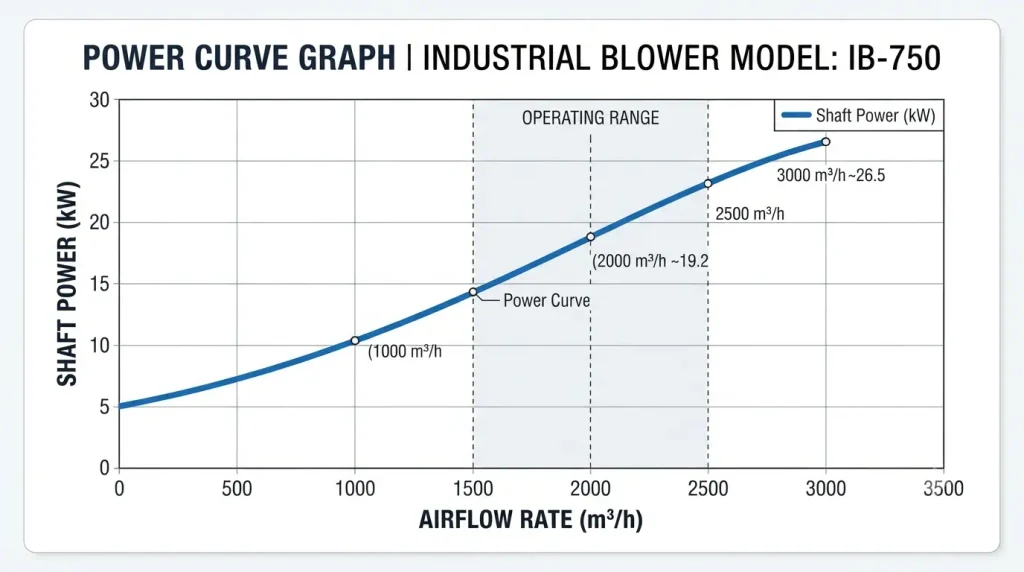

4. Power Curve

The power curve indicates how much power the blower requires at different operating conditions. Manufacturers may express blower power as:

• kW
• HP
• BHP
• Shaft power

The power curve is important for selecting the motor and estimating operating energy requirements.

Basic Relationship

A simplified relationship is: Power = Air Power ÷ Efficiency

For SI units: Power (W) = Q × ΔP ÷ η

where:

• Q = m³/s
• ΔP = Pa
• η = decimal efficiency

For example:

• Q = 2 m³/s
• ΔP = 1,000 Pa
• Efficiency = 70% = 0.70

Therefore: Power = 2 × 1,000 ÷ 0.70 ≈ 2,857 W = 2.86 kW

This is a simplified theoretical calculation.

Why Motor Selection Matters

Suppose the blower’s calculated shaft requirement is approximately 7 kW. The engineer must not simply assume that any nearby motor rating is acceptable. Motor selection should consider:

• Manufacturer’s power curve
• Maximum expected operating power
• Motor efficiency
• Starting current
• Voltage
• Frequency
• Duty cycle
• Ambient temperature
• Altitude
• Service factor
• Drive losses
• VFD operation, if applicable

For example, industrial installations in the USA may commonly use 60 Hz electrical systems, while India commonly uses 50 Hz systems. The blower’s rated speed and performance must therefore be checked against the actual electrical supply.

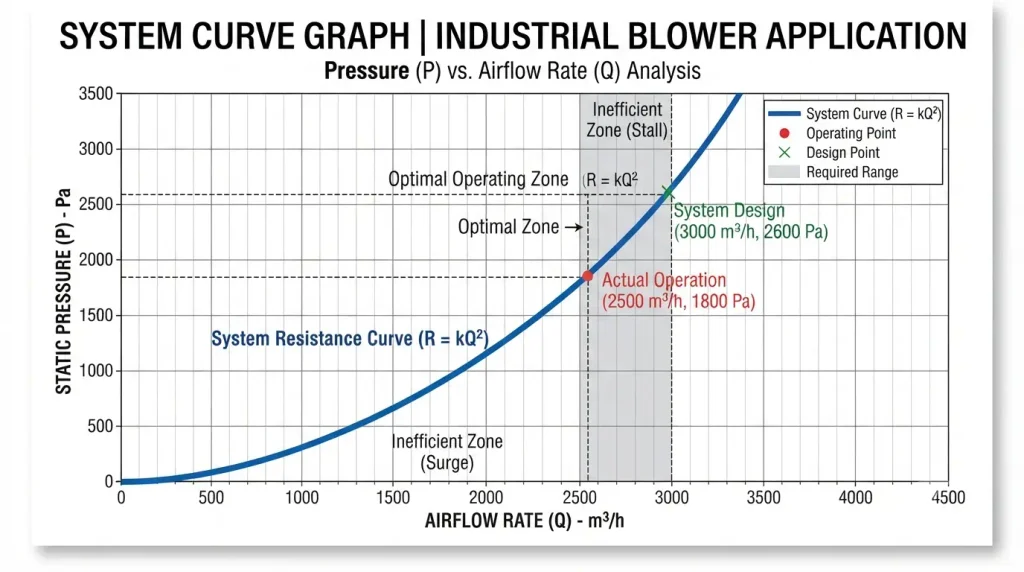

5. System Curve

The system curve is one of the most important concepts in blower selection. Unlike the blower performance curve, the system curve describes the resistance of the connected air system. The system may include:

• Ducts
• Elbows
• Filters
• Dampers
• Grilles
• Furnace passages
• Heat exchangers
• Scrubbers
• Process equipment
• Expansion/reduction sections

As airflow increases, system resistance normally increases rapidly.

For many systems: ΔP ∝ Q²

A simplified equation is: ΔP = KQ²

where:

• ΔP = system pressure loss
• Q = airflow
• K = system resistance coefficient

Practical System Curve Example

• Suppose an industrial duct system requires: 500 Pa at 2,000 CFM
• Assuming square-law behavior, what happens at 4,000 CFM?

Use: ΔP₂ = ΔP₁ × (Q₂/Q₁)²

Therefore:

• ΔP₂ = 500 × (4,000/2,000)²
• ΔP₂ = 500 × 2²
• ΔP₂ = 500 × 4
• ΔP₂ = 2,000 Pa

Therefore, doubling airflow can increase system pressure requirement by approximately four times under this simplified relationship. This is why increasing blower airflow is not always as simple as increasing motor size.

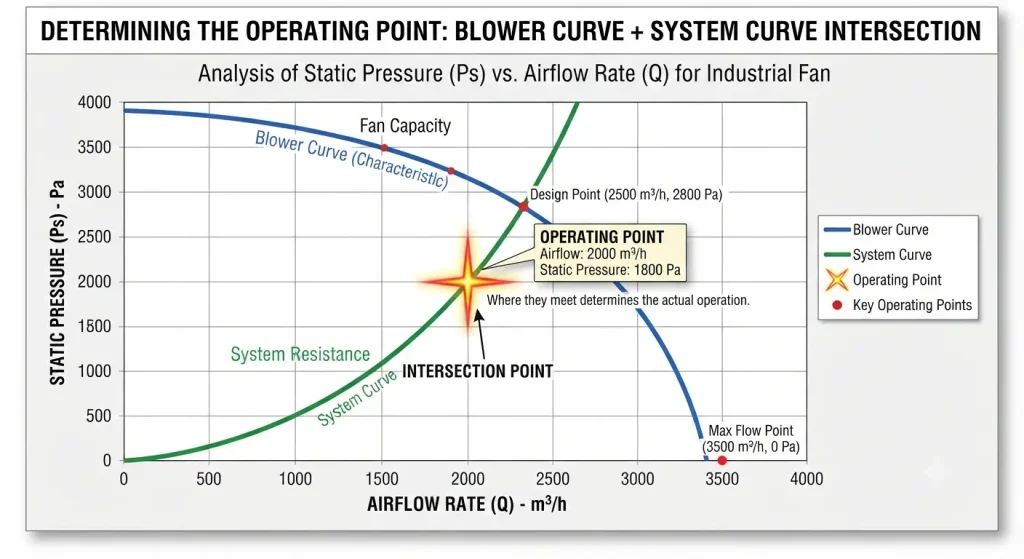

Blower Curve + System Curve = Operating Point

This is arguably the most important concept in understanding blower performance curves. The blower has its own performance characteristics. The system has its own resistance characteristics. The operating point occurs where the blower performance curve intersects the system curve.

At that point: Blower pressure = System pressure and the corresponding airflow is the actual operating airflow.

For example:

Required system: 3,000 CFM at 1,000 Pa

• If the blower curve intersects the system curve at: 3,000 CFM and 1,000 Pa then the blower/system combination is operating at approximately that point.
• If the system resistance increases because a filter becomes dirty or a damper is partially closed, the system curve changes. The operating point can then move to a lower airflow.

Why the Operating Point Changes

Several factors can change actual blower performance.

Dirty Filter

• A clogged filter increases pressure loss.
• Result: Higher system resistance → lower airflow

Closed Damper

• A partially closed damper increases system resistance.
• Result: Higher resistance → operating point shifts

Smaller Duct

• Reducing duct diameter can significantly increase pressure loss.

Longer Duct

• Longer ductwork generally creates additional friction losses.

Additional Elbows

• Each bend introduces additional pressure loss.

Process Changes

• Changes in furnace, burner, scrubber, dryer, or production equipment can also alter system resistance.

Practical Industrial Example: Furnace Combustion Air

Consider a factory using a centrifugal blower to provide combustion air to a furnace. Suppose the design requirement is:

• Airflow = 5,000 CFM
• Required static pressure = 2,000 Pa

Engineer should look for a blower whose performance curve can deliver: 5,000 CFM at 2,000 Pa

The engineer should then check:

1. Static pressure curve
2. Total pressure definition
3. Efficiency at operating point
4. Required shaft/motor power
5. System resistance
6. Operating limits
7. Temperature and air density
8. Motor and drive requirements

A blower capable of 8,000 CFM at nearly zero pressure does not automatically satisfy this application.

Practical Industrial Example: Dust Collection

• Suppose a dust collection system needs: 4,000 CFM
• The estimated total system resistance is: 1,500 Pa
• The blower performance chart must therefore be checked around: 4,000 CFM @ 1,500 Pa
• Now suppose the filter becomes loaded and system resistance increases to: 2,000 Pa

The blower may deliver less than 4,000 CFM unless the blower/system has sufficient operating capability. This illustrates why maintenance of filters and ducts can directly affect blower performance.

Practical Industrial Example: Ventilation

• Imagine an industrial ventilation system designed for: 10,000 CFM
• with an estimated system resistance of: 750 Pa

The engineer should identify the intersection of the blower curve and system curve around the required operating point. The efficiency and power curves should then be checked. If the blower operates far away from its efficient region, the system may consume more electrical energy than expected.

Important Blower Performance Parameters

When reading a manufacturer’s chart, look for these parameters.

Airflow	CFM or m³/h	This tells you how much air the blower can move.
Pressure	Pa, kPa, mmWG, inWG	This tells you how much resistance the blower can overcome.
Speed	RPM	Changing speed can significantly change blower performance.
Efficiency	%	Higher efficiency generally means less input power is required for the same useful air power.
Power	kW or HP	This helps with motor selection.
Operating Temperature		Temperature affects air density and therefore blower performance.
Air Density		Performance can change when handling: Hot air Cold air High-altitude air Process gases

Important Formulas for Blower Analysis

1. Air Power : P_air = Q × ΔP

• P_air = air power in watts
• Q = airflow in m³/s
• ΔP = pressure in Pa

2. Efficiency : η = P_air / P_shaft × 100

3. Shaft Power : P_shaft = Q × ΔP / η

• where efficiency is expressed as a decimal.

4. System Pressure : ΔP = KQ²

5. System Pressure Change : ΔP₂ = ΔP₁ × (Q₂/Q₁)²

• This equation is useful for understanding how system resistance changes when airflow changes.

CFM to m³/s Conversion

For readers working between US and SI units: 1 CFM ≈ 0.0004719 m³/s

Therefore: 5,000 CFM × 0.0004719 ≈ 2.36 m³/s

This conversion can be useful when applying the air-power equation.

How to Read a Blower Performance Curve Step by Step

Step 1: Determine Required Airflow

• Start with the process requirement. For example: 5,000 CFM

Step 2: Determine System Pressure

• Calculate the pressure losses through:

• Ducts
  • Filters
    • Elbows
      • Dampers
        • Process equipment

Suppose the result is: 2,000 Pa

Step 3: Find the Required Operating Point

• Locate approximately: 5,000 CFM and 2,000 Pa on the performance chart.

Step 4: Check the Static Pressure Curve

• Confirm that the blower can provide the required pressure at the required airflow.

Step 5: Check Total Pressure

• Determine whether the manufacturer’s pressure curve is static or total pressure.

Step 6: Check Efficiency

• Find the efficiency at the operating point.

Step 7: Check Power

• Determine the required shaft or input power.

Step 8: Select the Motor

• Select a suitable motor according to the manufacturer’s recommendations and applicable operating conditions.

Step 9: Check Temperature and Density

• If the blower handles hot process air, correct analysis may be required.

Step 10: Confirm Operating Range

• Make sure the selected operating point is within the manufacturer’s recommended range.

Common Mistakes When Reading Blower Curves

Mistake 1: Selecting by Maximum CFM

• Maximum CFM is often measured under conditions that do not represent the actual system.
• Better approach: Select using CFM + required pressure.

Mistake 2: Ignoring System Resistance

• A blower cannot deliver its rated airflow independent of the connected system.

Mistake 3: Confusing Static and Total Pressure

• Always identify the pressure definition used by the manufacturer.

Mistake 4: Ignoring Efficiency

• Two blowers may meet the same airflow and pressure requirement but have different energy requirements.

Mistake 5: Selecting Motor Size Without Checking the Power Curve

• The required power can change with operating point.

Mistake 6: Ignoring Air Temperature

• Hot air has lower density than cold air, which can affect performance and mass flow.

Mistake 7: Ignoring Filter Loading

• A clean filter and a heavily loaded filter do not have the same pressure drop.

Static Pressure, Total Pressure, Efficiency, Power and System Curve: Quick Comparison

Curve	Main Purpose	Typical Unit
Static Pressure Curve	Shows pressure available against airflow	Pa, mmWG, inWG
Total Pressure Curve	Shows overall pressure rise	Pa, kPa
Efficiency Curve	Shows blower efficiency	%
Power Curve	Shows required power	kW, HP, BHP
System Curve	Shows system resistance	Pa, mmWG, inWG

Why Blower Performance Curves Matter for USA and India

Industrial blower selection principles are broadly similar in both markets, but actual installations can have different electrical, environmental, and regulatory conditions.

In the USA, engineers may encounter systems designed around 60 Hz electrical power, while India commonly uses 50 Hz power. Motor speed and blower performance must therefore be checked against the actual motor and drive configuration. Industrial conditions can also vary significantly.

For example:

• Hot furnace air
• Dust-loaded air
• High ambient temperature
• High-altitude installations
• Corrosive gases
• Humid environments

These conditions may require a blower designed specifically for the application rather than a standard catalog model. Always use the manufacturer’s performance data for final equipment selection.

Technical Analysis: What Happens When Speed Changes?

For geometrically similar fans/blowers, commonly used affinity-law relationships are:

• Q ∝ N
• Pressure ∝ N²
• Power ∝ N³

where:

• Q = airflow
• N = rotational speed

For example, if speed increases by 10%:

• Airflow approximately changes by: 1.10 × Q
• Pressure approximately changes by: 1.10² = 1.21 or about 21%.
• Power approximately changes by: 1.10³ = 1.331 or about 33%.

These relationships are simplified engineering relationships and should not replace manufacturer data, particularly where density, VFD limits, compressibility, temperature, or operating constraints are significant.

This demonstrates why increasing blower speed can have a substantial impact on power consumption.

How to Use the 5 Curves for Blower Selection

A practical selection method is:

Required Process Airflow → System Pressure Calculation → Blower Performance Curve → Operating Point → Efficiency → Power → Motor

This sequence prevents a common problem where someone selects a blower based only on CFM. For example:

• Required airflow: 5,000 CFM
• System resistance: 2,000 Pa
• Required point: 5,000 CFM @ 2,000 Pa

Then evaluate: Static pressure → Total pressure → Efficiency → Power → System curve

The final selection should satisfy the process requirement while remaining within the manufacturer’s recommended operating range.

Conclusion

Understanding a blower performance curve is essential for selecting the right industrial blower for ventilation, furnace combustion, dust collection, drying, cooling, exhaust, and process-air applications.

The five curves provide different but connected pieces of information:

• Static pressure curve tells you how pressure changes with airflow.
• Total pressure curve shows the overall pressure rise, including velocity pressure.
• Efficiency curve shows how effectively the blower operates.
• Power curve tells you how much mechanical or electrical power may be required.
• System curve represents the resistance of the actual duct and process system.
• The most important selection principle is to identify the operating point, where the blower curve intersects the system curve.

Therefore, don’t select an industrial blower simply because it has a high advertised CFM. Determine the required CFM + pressure, calculate the system resistance, locate the operating point, check efficiency and power, and then verify the motor, temperature, speed, and manufacturer’s operating limits.

For engineers, maintenance professionals, technicians, and industrial buyers in the USA and India, learning to read these five curves can make blower selection more accurate and help avoid problems such as insufficient airflow, excessive energy consumption, motor overload, and poor process performance.

In simple terms:

The right blower is not the one with the highest CFM—it is the one that delivers the required airflow at the required pressure within a suitable operating and efficiency range.

FAQs:
