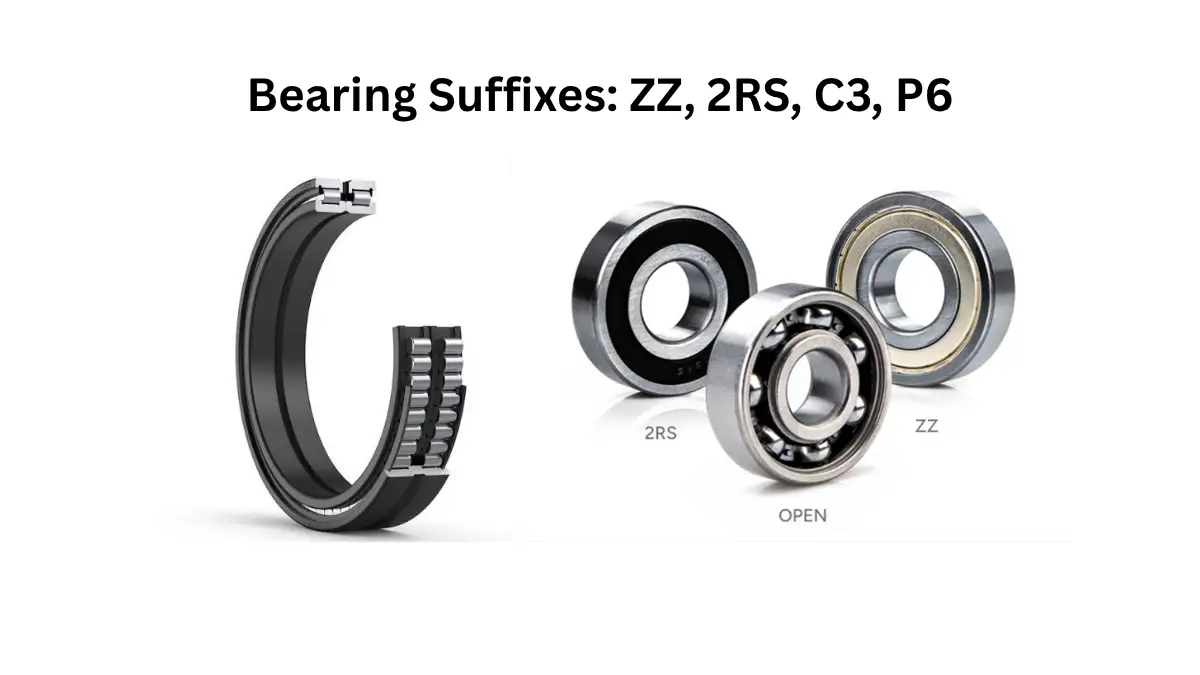

Bearing Suffixes: ZZ, 2RS, C3 & P6 -Avoid Costly Bearing Selection Mistakes

When selecting or replacing a bearing, the bearing suffix is just as important as the main bearing number. Suffixes such as ZZ, 2RS, C3 and P6 indicate features like shielding, sealing, internal clearance and tolerance.

For example, 6200ZZC3P6 is a 10 × 30 × 9 mm bearing with ZZ shields, C3 clearance and P6 tolerance. Understanding bearing suffix meaning helps engineers, technicians and buyers select the correct bearing for each application.

This guide explains bearing suffixes, ZZ bearing meaning, 2RS bearing meaning, C3 bearing meaning, P6 bearing, ZZ vs 2RS, C3 vs CN and how to correctly read a complete bearing designation.

Understanding bearing suffix meaning is therefore essential for engineers, maintenance technicians, machine builders, mechanics and industrial buyers.

What Is a Bearing Suffix?

A bearing suffix is a letter, number or combination of letters and numbers added to the basic bearing designation to identify a specific feature or configuration of the bearing.

In simple words:

The basic bearing number tells you what bearing it is, while the suffix tells you how that bearing is configured.

For example: 6205-2RS-C3

can be interpreted as:

• 6205 – basic bearing designation
• 2RS – sealing arrangement
• C3 – internal clearance

The exact meaning of a suffix depends on the bearing manufacturer and product family. Therefore, a code should always be checked against the manufacturer’s official catalogue before purchasing a replacement.

Understanding Bearing Suffixes

Bearing suffixes are used because two bearings having the same basic size may be designed for very different operating conditions.

Consider these examples:

• 6205
• 6205-ZZ
• 6205-2RS
• 6205-C3
• 6205-2RS-C3

The basic bearing designation may be related to the same dimensional series, but the sealing and clearance characteristics can be different. This is why reading only the first four digits of a bearing can lead to an incorrect replacement.

Common Bearing Suffix Categories

Suffix Category	What It Can Describe
Shield/seal	Protection from contaminants
Internal clearance	Internal radial clearance
Tolerance	Dimensional/rotational precision
Cage	Cage material or design
Snap ring	Mounting arrangement
Lubrication	Factory lubricant or special lubrication
Special design	Application-specific construction

Different manufacturers use different designation systems. Consequently, bearing suffixes should always be interpreted according to the manufacturer’s documentation.

Bearing Suffixes: Common Codes Explained

Suffix	General Meaning
Z	Shield/seal on one side, depending on manufacturer
ZZ / 2Z	Shields on both sides
RS	Rubber contact seal on one side
2RS	Rubber contact seals on both sides
C2	Clearance smaller than normal
CN / C0	Normal internal clearance
C3	Clearance greater than normal
C4	Clearance greater than C3
C5	Clearance greater than C4
P6	Higher dimensional/rotational precision tolerance class
M	Often machined brass cage in SKF designation
N	Snap-ring groove in many designation systems

However, these codes should not automatically be assumed identical across every brand. NSK, for example, lists ZZ as shields on both sides, while its designation system also uses other seal codes such as RSR, 2RSR and 2ZR for particular bearing families.

Therefore, the safest practice is to decode a bearing number using the specific manufacturer’s catalogue.

1. ZZ Bearing Meaning

The ZZ bearing meaning generally refers to a bearing equipped with shields on both sides.

For NSK bearings, the designation ZZ specifically identifies a shield on both sides. NSK also explains that shielded bearings provide protection for bearing components and help maintain lubrication.

ZZ Bearing Features

A typical ZZ bearing provides:

• Metal shields on both sides
• Protection against dust and larger contaminants
• Low friction compared with contact rubber seals
• Good suitability for many high-speed applications
• Factory lubrication in many sealed/shielded bearing configurations

ZZ vs Open Bearing

An open bearing has no shields or seals. A ZZ bearing adds metal shields on both sides. This makes ZZ useful where the environment is relatively clean and low friction is important.

Important Limitation

A ZZ shield should not be treated as a completely waterproof seal.

If the application involves:

• Water
• Heavy moisture
• Mud
• Fine abrasive dust
• Washing operations

a contact-sealed bearing may be more appropriate.

What Is a Bearing Shield?

A shield is a protective component fitted close to the bearing’s rotating parts.

Its purpose is to help:

• Reduce the entry of dust and larger contaminants
• Retain lubricant
• Protect internal bearing components
• Reduce exposure to the surrounding environment

A shielded bearing is different from a contact-sealed bearing.

Example: 6200ZZC3P6

NSK lists the following technical information for the 6200ZZC3P6:

Specification	Technical Data
Bearing type	Single-row deep groove ball bearing
Bore	10 mm
Outside diameter	30 mm
Width	9 mm
Shield	ZZ – both sides
Internal clearance	C3
Tolerance	P6
Dynamic load rating	5,600 N
Static load rating	2,390 N
Grease limiting speed	28,000 rpm
Approx. mass	0.032 kg

Where Are ZZ Bearings Used?

ZZ bearings are commonly found in applications where protection from ordinary dust is required without using a contacting rubber seal.

Typical applications include:

• Electric motors
• Fans
• Pumps
• Industrial machinery
• Conveyors
• Textile machinery
• Agricultural equipment
• General mechanical equipment

NSK lists deep groove ball bearings in applications including motors, agricultural machinery, textile machines and conveying equipment.

Important Point

ZZ does not mean waterproof. A shield provides protection, but it should not automatically be considered equivalent to a rubber contact seal designed for stronger contamination or moisture protection.

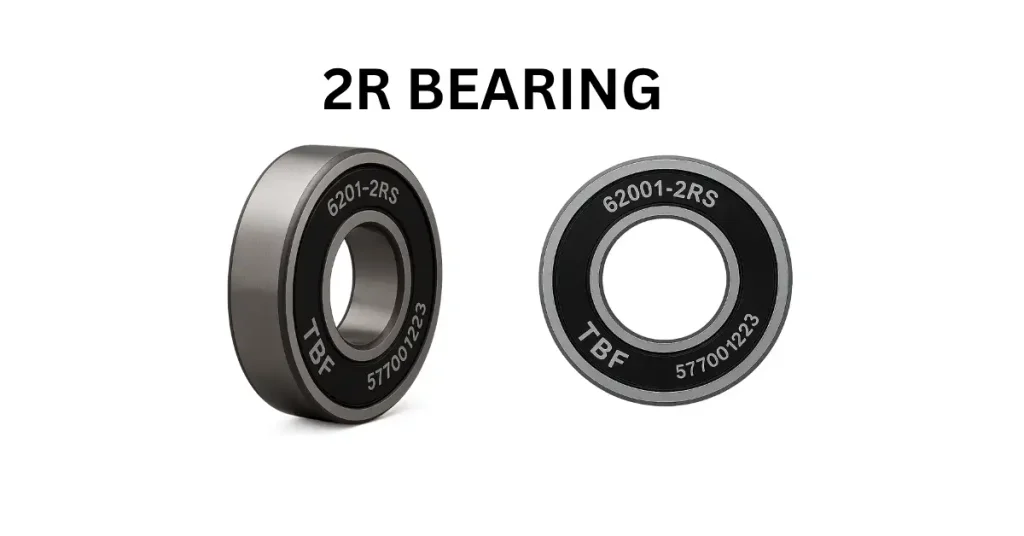

2. 2RS Bearing Meaning

The 2RS bearing meaning generally refers to a bearing having rubber contact seals on both sides.

The purpose of the rubber seals is to provide additional protection against contaminants while helping retain the lubricant inside the bearing.

How Does a 2RS Bearing Work?

A rubber seal is positioned between the bearing ring and rotating assembly. Unlike a simple shield, a contact seal makes contact with the rotating component. This can improve protection against:

• Dust
• Dirt
• Moisture
• Contaminants

However, contact seals can also produce more friction than non-contact shielding.

2RS Bearing Applications

2RS bearings are commonly considered for applications where environmental contamination is a concern, such as:

• Conveyor systems
• Agricultural machinery
• Wheels and rollers
• General industrial machines
• Small electric motors
• Workshop equipment
• Machinery exposed to dust or moisture

The correct choice still depends on speed, temperature, lubricant and manufacturer’s specifications.

ZZ vs 2RS Bearing

One of the most common bearing questions is: Is ZZ better than 2RS ?There is no universal winner. The correct choice depends on the application.

Feature	ZZ	2RS
Protection type	Shield	Rubber seal
Seal contact	Generally non-contact	Contact
Dust protection	Good for many clean environments	Generally stronger
Moisture protection	Limited	Generally better
Friction	Generally lower	Generally higher
Heat generation	Generally lower	Can be higher
Speed suitability	Often favorable	Application-dependent
Dirty environment	Moderate	Generally more suitable

Practical Example

Suppose a bearing is installed inside a relatively clean electric motor.

A ZZ bearing may be suitable when low friction and speed are important. Now consider a conveyor bearing operating in a dusty environment. A 2RS bearing may be more appropriate because contamination protection becomes more important.

The important principle is:

Choose the suffix according to the operating environment, not simply because one suffix sounds better.

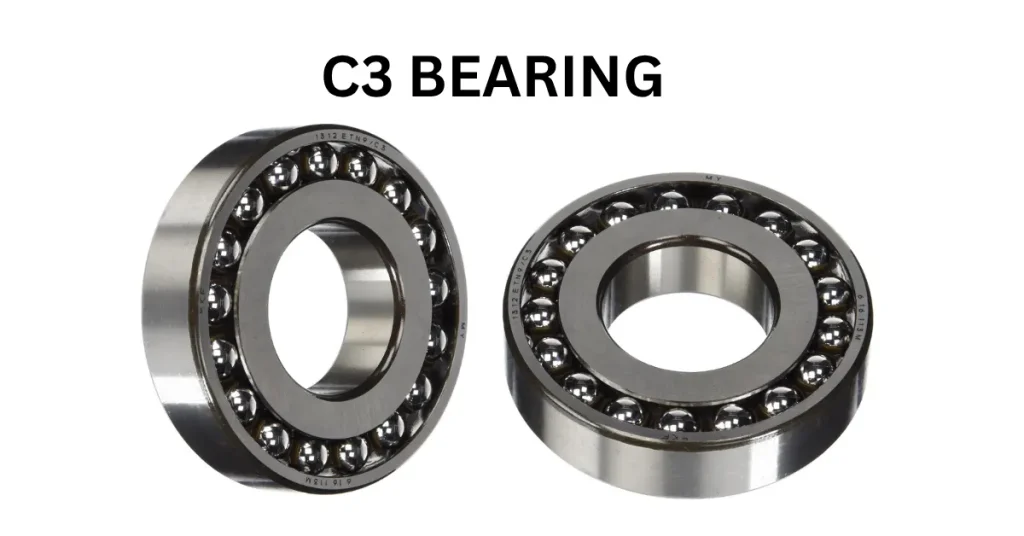

3. C3 Bearing Meaning

The C3 bearing meaning is:

C3 indicates radial internal clearance greater than normal clearance.

This is one of the most misunderstood bearing suffixes. C3 does not mean that the bearing is automatically stronger, better quality or suitable for every machine. It describes the bearing’s internal clearance condition.

What Is Bearing Internal Clearance?

Bearing internal clearance is the amount of relative movement between the bearing rings and rolling elements before the bearing is subjected to operating conditions. When a bearing operates, several factors can change its effective operating clearance.

These include:

• Temperature
• Shaft interference fit
• Housing interference fit
• Shaft expansion
• Housing expansion
• Operating speed
• Load
• Mounting conditions

If the bearing becomes hotter during operation, thermal expansion can reduce the available internal clearance. This is one reason why bearings with greater initial clearance may be specified for particular applications.

C2, CN, C3, C4 and C5 Bearing Clearance

A simplified clearance sequence is:

C2 < CN < C3 < C4 < C5

Where:

Clearance Code	General Meaning
C2	Smaller than normal
CN / C0	Normal clearance
C3	Greater than normal
C4	Greater than C3
C5	Greater than C4

Is C3 Better Than CN?

No. C3 is not a quality rating.

For example, if a machine is designed for normal internal clearance and you install a C3 bearing without considering the application, excessive clearance may contribute to unwanted noise, vibration or reduced running accuracy.

On the other hand, an application with higher operating temperature or particular interference fits may require C3 clearance. Therefore:

C3 should be selected because the application requires it—not because C3 appears to be a higher specification.

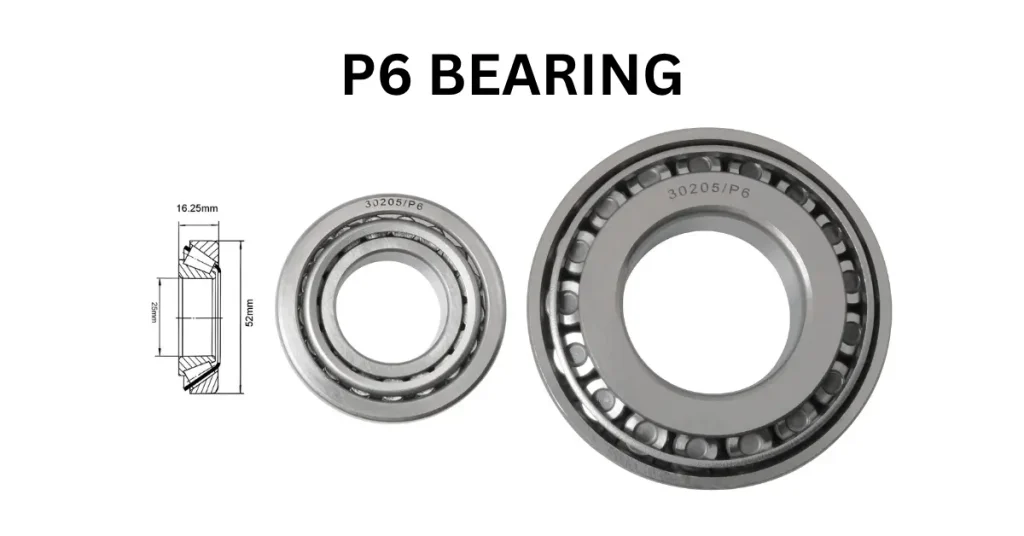

4. P6 Bearing Meaning

P6 is a tolerance or precision classification used in certain bearing designation systems.

In simple terms, the P6 designation indicates a tighter tolerance class than the normal standard class in the applicable system.

For example, NSK lists P6 as the tolerance class for its 6200ZZC3P6 bearing.

C3 vs P6

This distinction is extremely important.

C3 = internal clearance

P6 = tolerance class

They describe two completely different characteristics.

A bearing can therefore have both:

C3 + P6

at the same time.

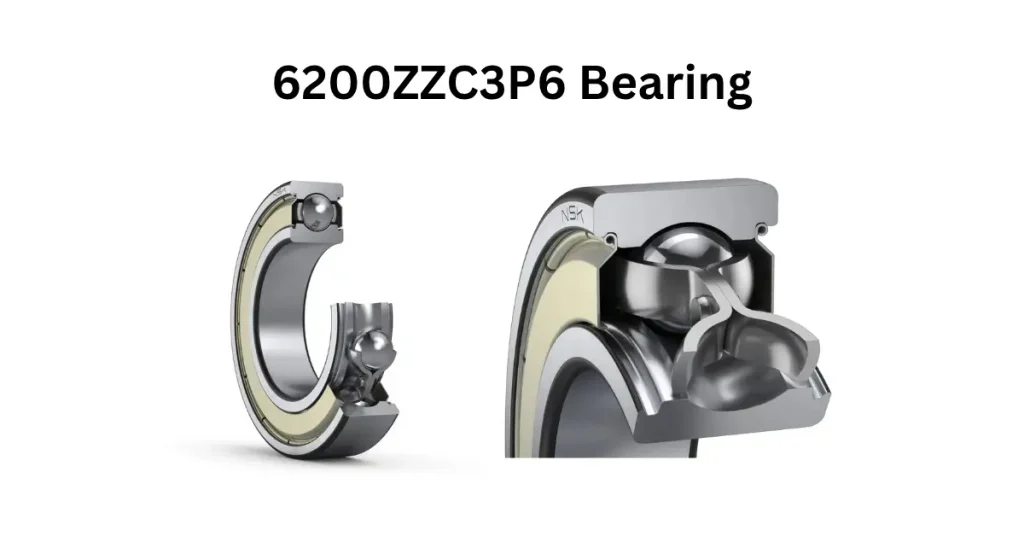

Real Example: 6200ZZC3P6

Let’s decode the complete bearing designation: 6200ZZC3P6

The designation can be understood as a combination of the basic bearing designation and additional specifications.

Basic Bearing

6200

NSK identifies this as a single-row deep groove ball bearing in the 62 series. The dimensions are:

• Bore = 10 mm
• Outside diameter = 30 mm
• Width = 9 mm

ZZ = shields on both sides

C3 = radial internal clearance greater than normal

P6 = tolerance class

So, in simplified form: 6200 + ZZ + C3 + P6

means:

Basic bearing + double shielding + increased internal clearance + specified precision/tolerance class

This is an excellent real-world example of why understanding the bearing number suffix is important.

Technical Data Example: NSK 6200ZZC3P6

According to NSK’s published product data:

Parameter	Value
Bearing number	6200ZZC3P6
Bearing type	Single-row deep groove ball bearing
Bore diameter	10 mm
Outside diameter	30 mm
Width	9 mm
Minimum chamfer	0.6 mm
Dynamic load rating	5,600 N
Static load rating	2,390 N
Grease limiting speed	28,000 rpm
Oil-bath speed	34,000 rpm
Number of balls	8
Ball diameter	4.762 mm
Approx. mass	0.032 kg
Shield	ZZ
Internal clearance	C3
Tolerance	P6

This data demonstrates that suffixes are not merely decorative letters. They identify engineering characteristics that can affect bearing selection and application suitability.

5. Bearing Number Suffix: How to Read It Correctly

When you see a complete bearing number, do not immediately assume every letter has the same meaning across all manufacturers.

For example:

6205-2RS-C3

can generally be interpreted as:

6205 → basic bearing designation

2RS → double rubber contact sealing arrangement in the applicable designation system

C3 → greater-than-normal internal clearance

However, the exact code should be confirmed using the manufacturer’s catalogue.

Four-Step Method

Step 1: Identify the basic bearing number	Determine the bearing family and dimensional designation.
Step 2: Identify the seal or shield	Look for codes such as ZZ, 2Z, RS or 2RS, depending on manufacturer.
Step 3: Identify internal clearance	Look for codes such as C2, CN, C3, C4 or C5.
Step 4: Identify precision/tolerance	Look for applicable tolerance codes such as P6.

• This systematic approach reduces the risk of ordering an incorrect replacement.

6. Why Bearing Suffixes Matter in Industrial Applications

A bearing may fit physically into a machine but still be unsuitable for the application.

For example, two bearings size can have the same:

• Bore
• Outside diameter
• Width

but different:

• Seals
• Shields
• Clearance
• Tolerance
• Cage
• Lubrication

This means dimensional compatibility does not always equal functional compatibility.

Example

Suppose an original machine uses:

6205-2RS-C3

If you replace it with:

6205-ZZ

the dimensions may be compatible, but the sealing arrangement and internal clearance may not be the same. That difference could matter if the machine operates in:

• Dust
• Moisture
• High temperature
• High speed
• Heavy contamination
• Precision applications

Therefore, replacement should ideally match the complete original designation unless an engineering-approved alternative is specified.

ZZ vs 2RS vs C3 vs P6

These four codes do not compete with each other because they describe different features.

Code	Main Function	Category
ZZ	Metal shields	Protection
2RS	Rubber contact seals	Protection
C3	Greater internal clearance	Clearance
P6	Higher tolerance class	Precision

This means a bearing can contain multiple codes at the same time.

For example: 6200ZZC3P6

can be interpreted as:

6200 + ZZ + C3 + P6

or:

Basic bearing + shields + clearance specification + tolerance class

How to Choose the Correct Bearing Suffix

Choosing the correct bearing suffixes should be based on the application rather than simply selecting the most advanced-looking code.

Choose ZZ when:

• Environment is relatively clean
• Low friction is important
• High-speed operation is required
• Moisture exposure is limited

Choose 2RS when:

• Dust protection is important
• Moisture exposure is possible
• Maintenance should be minimized
• Better sealing is required

Choose C3 when:

• Operating temperature is elevated
• Interference fits reduce operating clearance
• Application requires greater internal clearance
• Manufacturer/application specifications call for C3

Choose P6 when:

• Higher tolerance/precision is required
• The application specifies a P6 tolerance class
• Precision requirements justify the additional specification

Always follow the manufacturer’s engineering recommendation rather than choosing a suffix solely from a general rule.

7. Common Bearing Suffix Mistakes

Mistake 1: Thinking C3 Means Better Quality	C3 describes clearance, not overall bearing quality.
Mistake 2: Assuming ZZ Means Waterproof	ZZ is a shield configuration, not automatically a waterproof seal.
Mistake 3: Choosing 2RS for Every Application	2RS can offer strong contamination protection, but contact sealing can affect friction and speed characteristics.
Mistake 4: Confusing C3 With P6	C3 concerns internal clearance. P6 concerns tolerance/precision classification.
Mistake 5: Ignoring the Manufacturer	A suffix must be interpreted according to the applicable manufacturer’s designation system.
Mistake 6: Buying Only by Bore Size	A 20 mm bore alone is not enough to identify the correct industrial bearing.

• The complete bearing designation should be checked.

Conclusion

Understanding bearing suffixes is an important part of professional bearing selection.

The letters and numbers following a basic bearing designation can provide information about the bearing’s protection, internal clearance, precision and other design characteristics.

The most important codes discussed in this guide are:

• ZZ – generally indicates shields on both sides
• 2RS – generally indicates rubber contact seals on both sides
• C3 – indicates radial internal clearance greater than normal
• P6 – indicates a specified tolerance/precision class

A real example such as 6200ZZC3P6 shows how several specifications can be combined into one complete bearing designation. NSK lists this bearing as a 10 × 30 × 9 mm deep groove ball bearing with ZZ shields, C3 internal clearance and P6 tolerance.

The key lesson is simple:

Never select an industrial bearing by size alone. Always check the complete bearing number and its suffixes.

Finally, because bearing suffix conventions can vary between manufacturers and bearing families, the manufacturer’s official catalogue should always be treated as the final reference when identifying or ordering a bearing.

FAQs:
