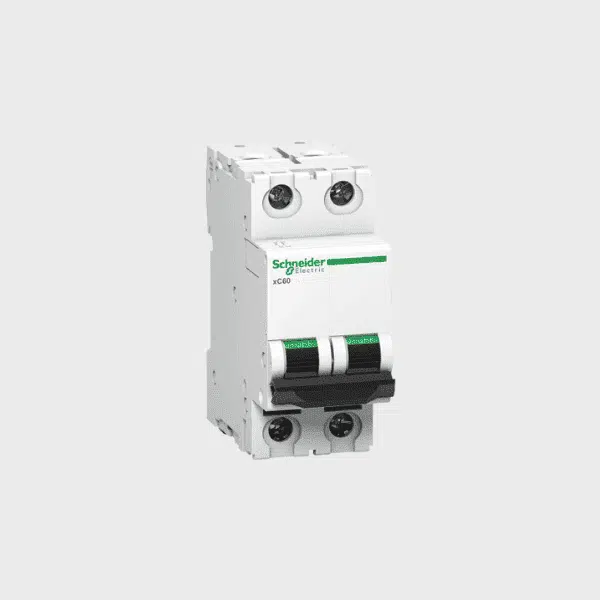

MCB 63A 10kA Schneider Electric : Durable, Safe & Smart

In today’s fast-paced industrial and residential environments, safety and performance are paramount. Electrical systems demand robust protection, and that’s where miniature circuit breakers like the Schneider Electric 63A DP C-Curve ACTI9 10kA MCB come into play.

Renowned for quality and safety, Schneider Electric has built a reputation for providing high-performance electrical products, and the A9N2P63C is no exception.

Product Overview :

• Brand: Schneider Electric
• Model: A9N2P63C
• Type: Double Pole (DP) Circuit Breaker
• Current Rating: 63 Amps
• Tripping Curve: C-Curve
• Breaking Capacity: 10kA @ 415VAC
• Mounting Type: DIN Rail Mount
• Dimensions: 7.5D x 7.5W x 2H cm
• Colour: White (RAL9003)
• Weight: 0.215 kg

Key Features & Specifications :

1. High Breaking Capacity:
   Capable of handling up to 10kA at 415V AC, ensuring protection in high-load environments.
2. Standard Compliance:
   Complies with both EN/IEC 60898-1 (residential) and EN/IEC 60947-2 (industrial) standards.
3. Green Strip Indicator:
   Visual confirmation of contact disconnection for enhanced safety.
4. Operational Voltage:
   Supports 240VAC operational voltage with 500VAC insulation and 6kV impulse withstand.
5. Durability:
   • Mechanical: Up to 20,000 cycles
   • Electrical: Up to 10,000 cycles
6. Environmental Endurance:
   • Operating Temperature: -30°C to +70°C
   • Storage Temperature: -40°C to +85°C
7. Protection Degree:
   • IP20 (device alone)
   • IP40 (in enclosure)

Applications : Who Can Use It?

Residential Users

• Perfect for main circuits in large homes or villas.
• Ideal for ACs, geysers, and other high-load appliances.

Industrial Users

• Excellent choice for heavy machinery, compressors, and motor control centers.

Commercial Establishments

• Can be used in office buildings, malls, and hospitals for lighting and power distribution.

Care & Maintenance Tips :

1. Routine Inspection:
   Periodically inspect for any signs of overheating, damage, or discoloration.
2. Proper Installation:
   Always ensure installation is performed by certified electricians.
3. Tightening Connections:
   Check and tighten terminal screws every few months to avoid loose contacts.
4. Avoid Moisture Exposure:
   Keep the unit in a dry and enclosed panel to protect from condensation and corrosion.
5. Load Management:
   Avoid overloading the circuit; use proper load balancing techniques.

• Turn off main power before installation or maintenance.
• Use insulated tools when working on or near the circuit breaker.
• Ensure compatibility with your electrical panel and connected load.
• Do not attempt repairs if the circuit breaker malfunctions—replace it immediately.
• Wear safety gloves and goggles during any electrical operation.

Comparative Analysis :

Feature	Schneider A9N2P63C	Havells 63A DP
Breaking Capacity	10kA	6kA
Standards Compliance	EN/IEC 60898-1, 60947-2	EN/IEC 60898-1
Mechanical Durability	20,000 cycles	10,000 cycles
Indicator	Green Safety Strip	No indicator
Operating Temp	-30°C to +70°C	0°C to +60°C

Verdict:

Schneider Electric provides higher durability, better safety indicators, and more robust standard compliance, making it a better investment for long-term use.

Positive Sentiments :

• Reliable Build Quality: The product’s mechanical and electrical life cycles ensure longevity.
• Safety Focused: The green strip indicator is a clever touch for peace of mind.
• Versatile Use: Ideal for residential, commercial, and industrial applications.
• Environmentally Robust: Operates efficiently under extreme temperature ranges.

Negative Sentiments :

• Slightly Expensive: Higher cost compared to local brands.
• Requires Professional Installation: Not ideal for DIY users.
• Limited Colour Options: Only available in white.

Conclusion :

The Schneider Electric 63A DP C-Curve ACTI9 10kA MCB (A9N2P63C) stands out as a premium, safety-first circuit breaker ideal for various environments. Its adherence to global standards, impressive mechanical and electrical lifespan, and safety innovations make it a top-tier choice for those who value quality and reliability.

Though it may come with a slightly higher price tag, its long-term performance justifies the investment.

FAQs :

Q1: Can I use this Product in residential wiring?
Yes, it meets EN/IEC 60898-1 standards for residential use.

Q2: Is this breaker suitable for three-phase applications?
No, it’s a double pole breaker, ideal for single-phase systems.

Q3: What does the C-curve mean?
It trips between 5 to 10 times the rated current, suitable for inductive loads.

Q4: Can I install this on a surface panel without DIN rail?
No, it’s specifically designed for DIN rail mounting.

Q5: Does it protect against both overload and short circuit?
Yes, it offers dual protection as per global standards.

Q6: Can I use it in sub-zero environments?
Yes, it operates efficiently down to -30°C.

Q7: How often should I replace this circuit breaker?
With proper usage, it can last for several years (up to 20,000 operations).
